| モジュールいいえ。: | CNC38-4A2S | 丸管・鉄管: | 38×2.5mm |
|---|---|---|---|
| 丸チューブ/ステンレスチューブ: | 35×2.0mm |
CNC38-4A2S

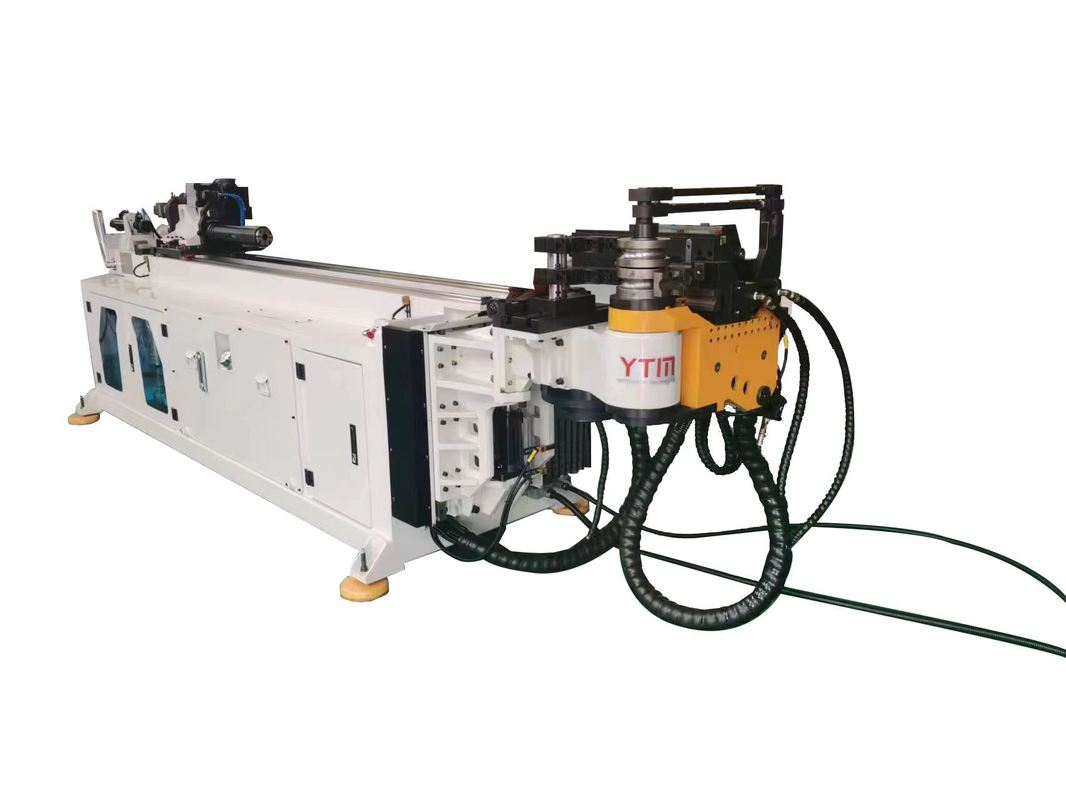

3D CNC automatic pipe bender
4 Axis and two stacks
Technical parameter
CNC38-4A2S 3DCNC automatic pipe bender parameter
|
Maxi bending capacity |
Φ38×2.5 t | |
|
Max. mandrel length |
3500mm Front position |
|
|
Max. feeding stroke |
2350mm | |
|
Feeding way |
Directly or feeding repeatly |
|
|
Max. bending radius |
150mm | |
|
Max. bending degree |
190° | |
|
Capacity bends for each tube |
16 bends |
|
|
Working speed |
Bending |
Max 230°/S |
|
Rotation |
Max. 460°/ S |
|
|
Feeding |
Max. 800mm/s |
|
| precision |
Bending |
±0.05° |
|
Rotation |
±0.05° | |
|
Feeding |
±0.05mm | |
|
Data input mode |
(XYZ) or(Y.B.C) | |
|
Rotation motor |
MITSUBISHI |
|
|
Bending motor |
MITSUBISHI |
|
|
Feeding motor |
MITSUBISHI |
|
|
Horizontal motor |
MITSUBISHI |
|
|
Hydraulic pump power |
4KW | |
|
Machine weight |
2250kg | |
| Machine sizeL.W.H(mm) | 4484mm×1150×1350 | |
CNC38-4A2S CNC pipe bender purchasing part
|
part description
|
Brand |
|
Control PLC
|
(MITSUBISHI) |
| software |
Self-made |
|
Low voltage pressure |
Schneider / FRANCE |
|
Feeding motor |
MITSUBISHI |
|
Feeding |
MITSUBISHI |
|
Rotation |
MITSUBISHI |
|
Rotation servo driver |
MITSUBISHI |
|
Oil pressure electric valve |
YUKEN or 7 Ocean / Taiwan |
|
The micro switch |
OMRON |
|
Proximity switch |
OMRON |
|
Oil pressure pump |
YUKNE or Hytek |
|
I/O INPUT OUTPUT PLATE |
SELF MADE |
|
Feeding Linear guide |
HINWIN/TAIWAN |
|
High speed Bearing |
NSK |
|
Seal elements |
DINGJI / Taiwan |
|
Bneding Reducer |
Sanade or same level /Taiwan |
|
Oil tube
|
Good Chinese band |
|
Reducer (feeding & rotation) |
Sanade or same level /Taiwan |
